EXTRACTION FINDER

$6,891.00$7,135.00

Clear

Overview

Description

The EXTRACTION FINDER is the first and only in-line molecular sensor for botanical extraction and distillation. Its purpose is to assist laboratory managers, technicians, and consultants to optimize their processes. This system will help improve the quality, consistency, and value of extract products. This package includes our newest sensor model – the ultra-sensitive Fraction Finder sensor.

Features & Details
  • Molecule Indicators – Detect and monitor key molecules in real-time (Delta-9 THC, THCa, CBD, CBDa, Degradates, Chlorophyll, Lipids, or Custom)
  • Intensity Values – Use standard digits to track molecule intensity values
  • Auto Highlighting – Simply check any given molecule’s checkbox and the screen will automatically identify and highlight the region that the molecule fluoresces at
  • Record and Review – Start and stop recording run data with the touch of a button for easy CSV review
  • Software Updates – Upgrade to free, feature-rich software releases easily from the field (currently V1.2.3)
  • Seamless Integration – Install onto ethanol, centrifuge, heptane, and some hydrocarbon extractors in the matter of minutes
  • Technical Support – Support via phone call, SMS text message, and email
  • Bonuses – Made in the USA | 1-Year Warranty | 30-day money back guarantee | Arometrix Academy

Lack of Objectivity During Processing

During extraction, it can be very challenging to monitor molecular changes and to determine when the process is over, especially for novice operators. Before the FRACTION FINDER, the traditional method of ‘fraction finding’ relied fully on experience, eyesight, color changes, or lab results. However, these methods are unscalable, inconsistent, and can delay time-to-market.

DON’T JUST DO YOUR PROCESS. KNOW YOUR PROCESS.

Have An End in Sight for the Extraction Process

Through innovative in-line analytics, this system provides scientific, instantaneous graphing of key molecules relevant to extraction. Tracking these allows operators to see when the extraction is over with actionable molecular data. Knowing exactly when Cannabinoids have been fully absorbed helps you to determine the proper extraction duration, and whether you were under-extracting or over-extracting.

In-Situ Fluorescence Spectroscopy

The EXTRACTION FINDER technology utilizes a principle known as fluorometry, a spectroscopic method of measuring molecules based on how they interact with light. The system primarily consists of the following:

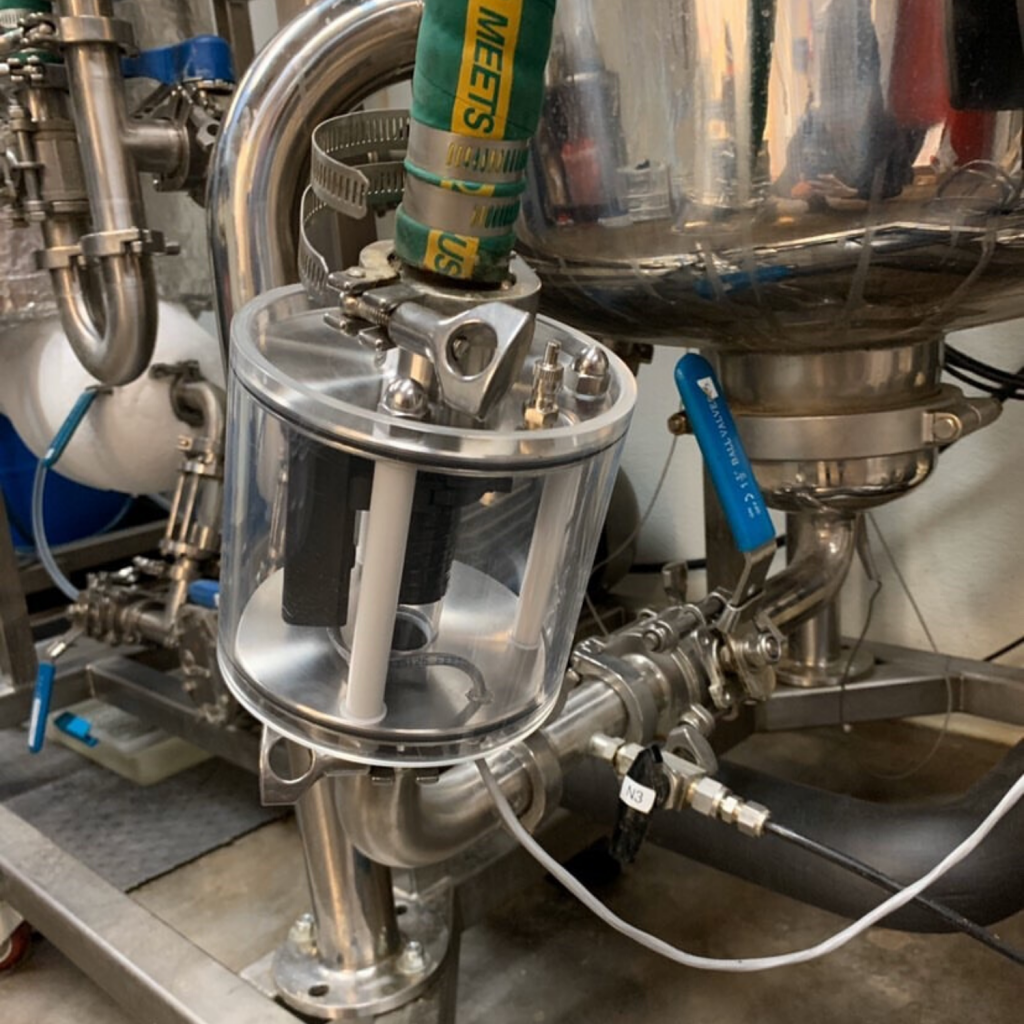

  • SensorThink of this as the “eyes” of the system. It operates in the near-UV fluorescence regime. The sensor wraps around a glass tube then connects and transmits to the pole-mounted display.
  • Display: Think of this as both the “brains” and “face” of the system, as this interprets the signal and displays wavelength information.
Included in this package:

Product Details

SYSTEM

CreatorArometrix, Inc.
Application(s)Extraction (ethanol, cryo-ethanol, centrifuge, and other C1D2 processes)
State of MaterialsExtracts
Expected Life Span10+ years
Shipping Weight10 lbs
Technology Validation ReferencePeer-reviewed research article, published by Cannabis Science & Technology
CertificationsNo
SENSOR

TypeUltra-sensitive
TechnologyIn-situ fluorescence spectroscopy sensor (contains an optical light pulse and UV fluorescence detector)
UV DomainNear UV
Size(s)Size 34
Interface Requirements-Size 34 Glass (31-34mm outer diameter)
-AMP Sight Glass
*Do not use with double-jacketed glass
Cable Length10’-30’
Max Temperature100 C
Min Temperature5C
Optical Detection Range300 – 1000 nanometers
Lower Detection Limit1 mg/mL (at a volume of 1 cubic centimeter of oil)
AccuracySpectral resolution: 15 nm max
Margin for ErrorNot applicable to qualitative measurements
Reading Speed> 1 second
Flow Rate LimitsNo flow rate limit
Min Fill Level1/8 volume
CalibrationNo
DISPLAY

Type7 inch LCD TFT display (contains a compute module with advanced software)
Power100-240VAC 50/60 Hz CE Rated (12 Volt 1 Amp into Display)
Power SupplyYes AND 10′ power supply extension
MountMounts to a laboratory stand bracket (pole up to ½” thick)
UnitsWavelength Nanometers (nanometers); Wavelength Intensity Values (arbitrary units)
PlotsSpectrogram; Wavelength Intensity graph
Metric TypeQualitative
Telemetry OptionsUSB
PLC Communication TypeSerial UART (BAUD: 115200, DATABITS: 8, STOPBITS: 1, PARITY: NONE)
SIGHT GLASS

CreatorAMP Equipment
FDA/USDA/ABS Certified GasketsPTFE
Other Steel Parts304l
TubeBorosilicate glass (pyrex)
Stainless parts304L
Surface Finish<63u
Sanitary End Clamps1.5” (2″ extender available)
Maximum Pressure30 Psi
Max Temperature350F
Min Temperature-70C
Product Dimensions6.94in (length) x 4.98in (width)

FAQs

What sight glass options do you offer?

We offer sight glasses with 1.5″ or 2″ tri-clamp sanitary flange connections. See an example of how it looks and where it goes on this page.

Is the kit C1D1 or C1D2?

No. While the kit is designed for C1D2 environments, hence the polycarbonate shield around the sensor and sight glass – it has not officially been certified as C1D2. The kit is NOT designed for C1D1 environments.
